Boutique Wheels

Wheel Nut Seats

Wheel Nut Seats

Regular price $8.00 AUD
Regular price Sale price $8.00 AUD
Sale Sold out
Quantity

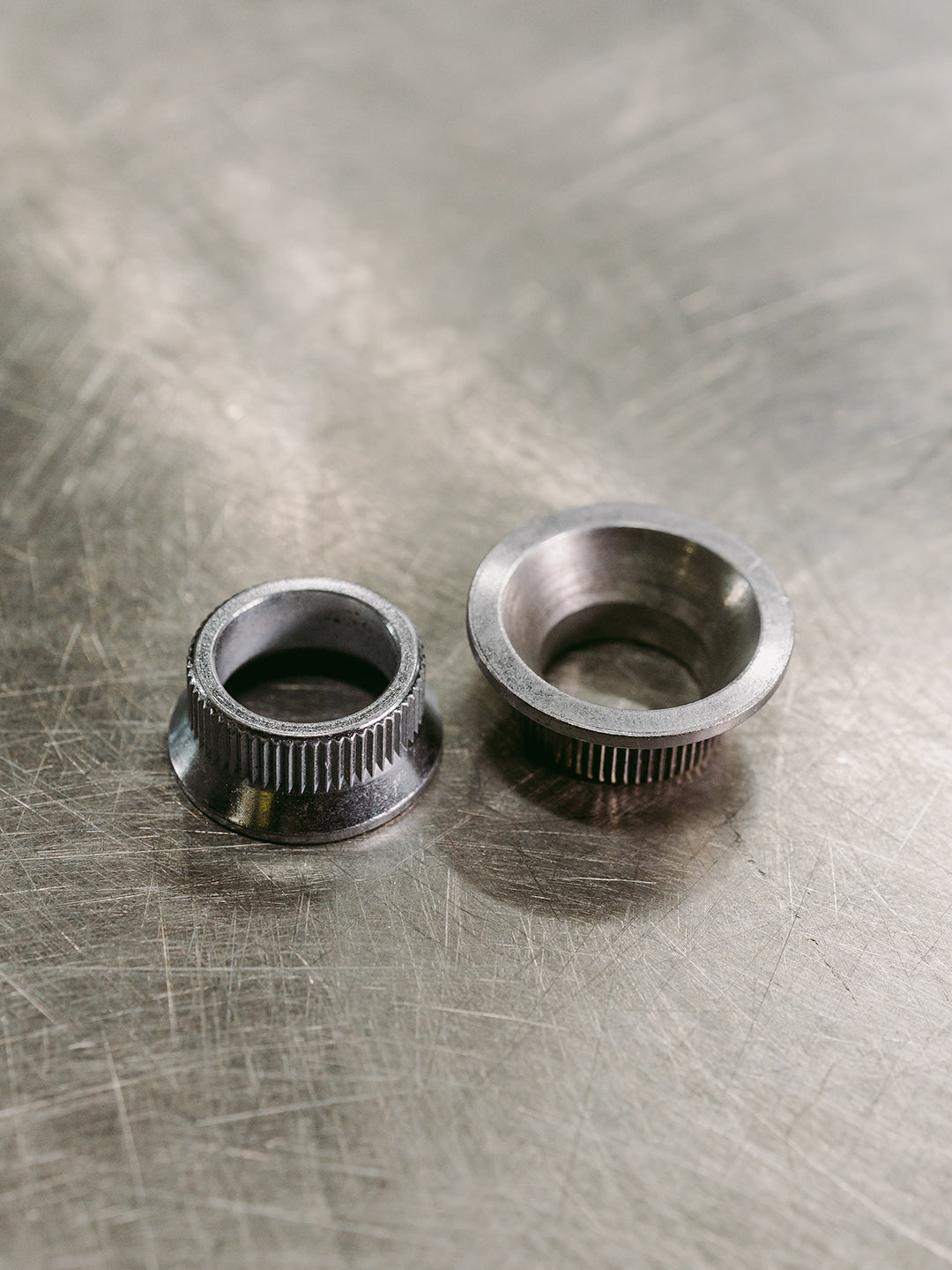

Custom made harden steel wheel nut seat replacement.

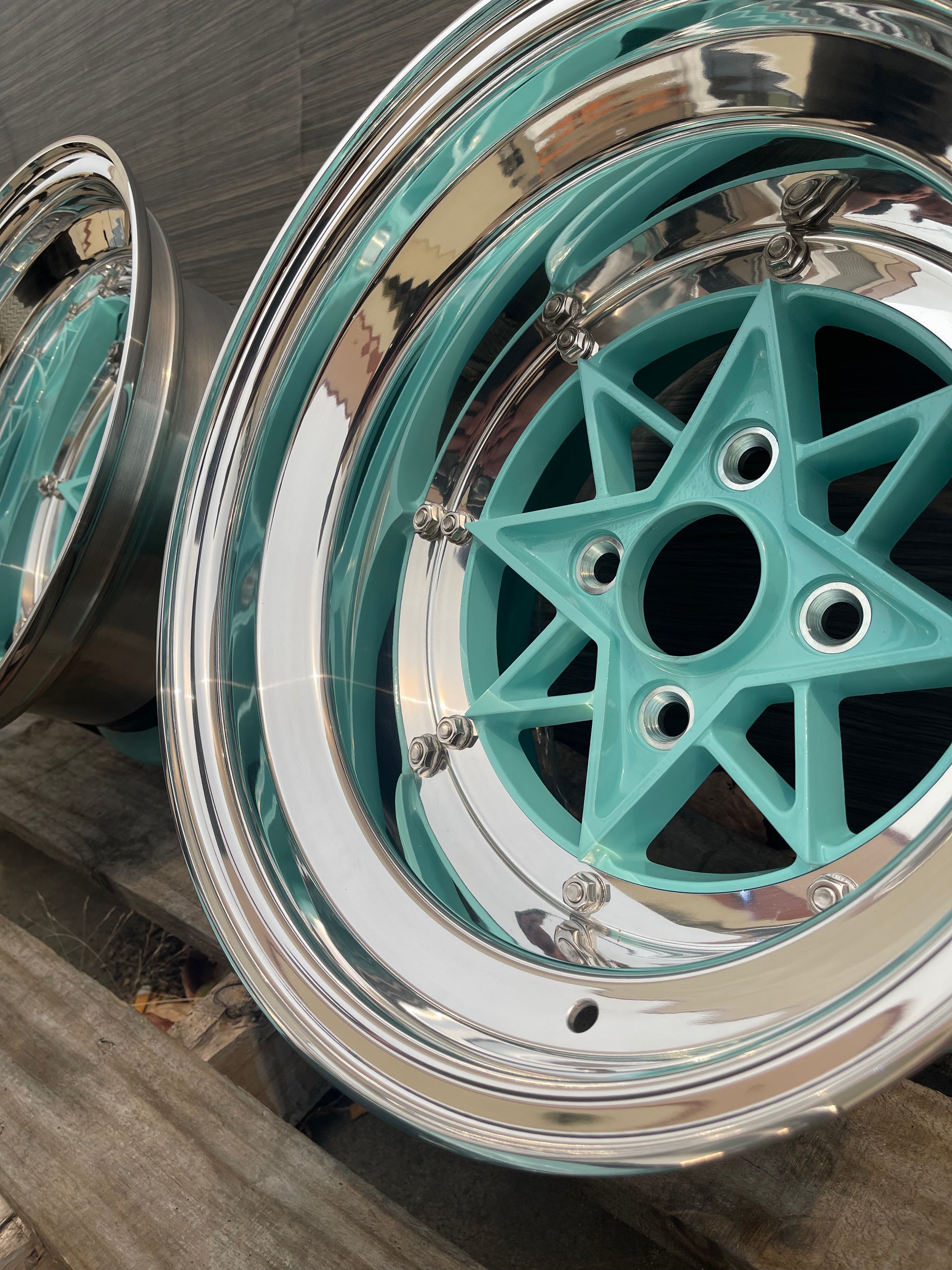

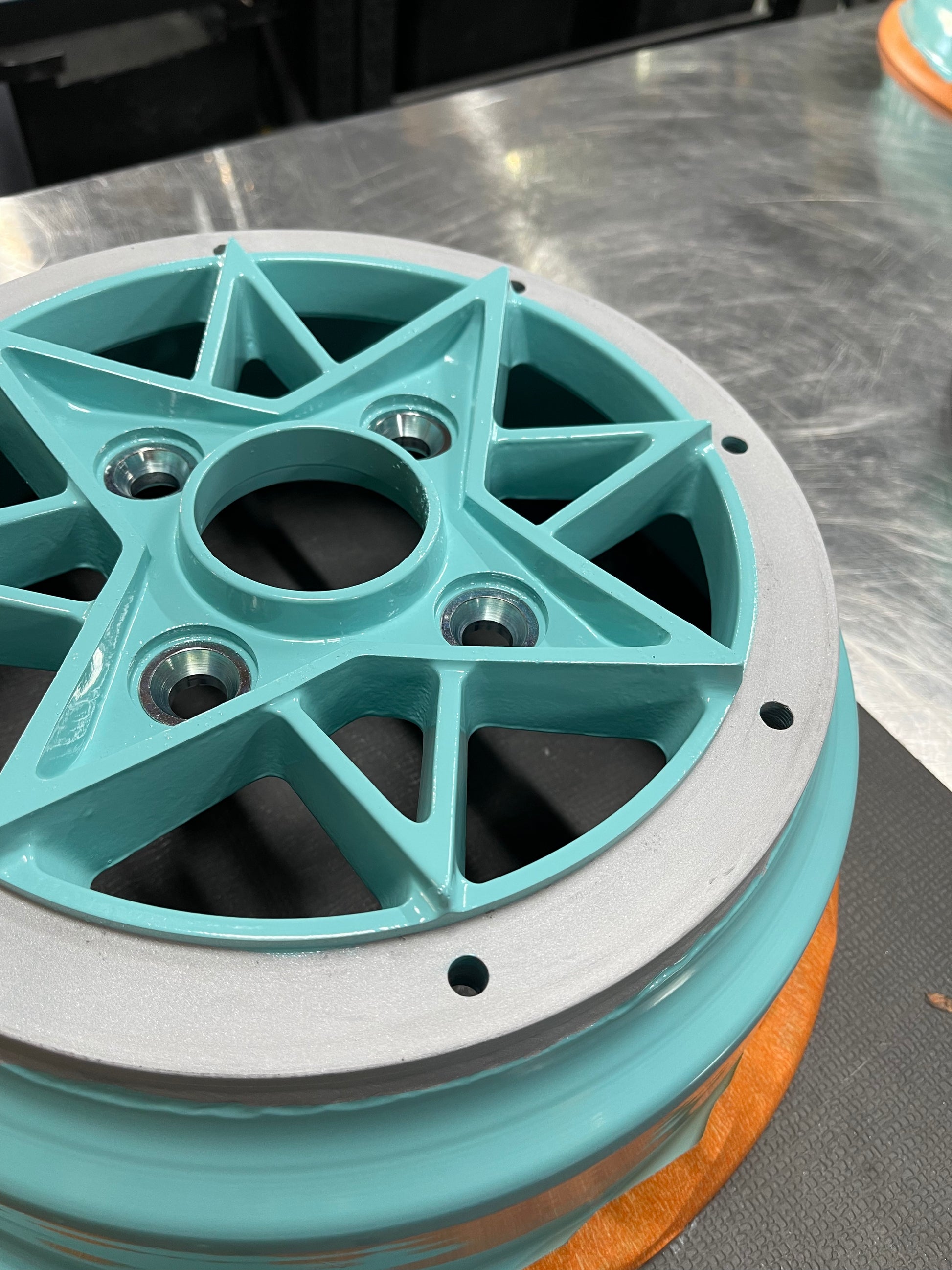

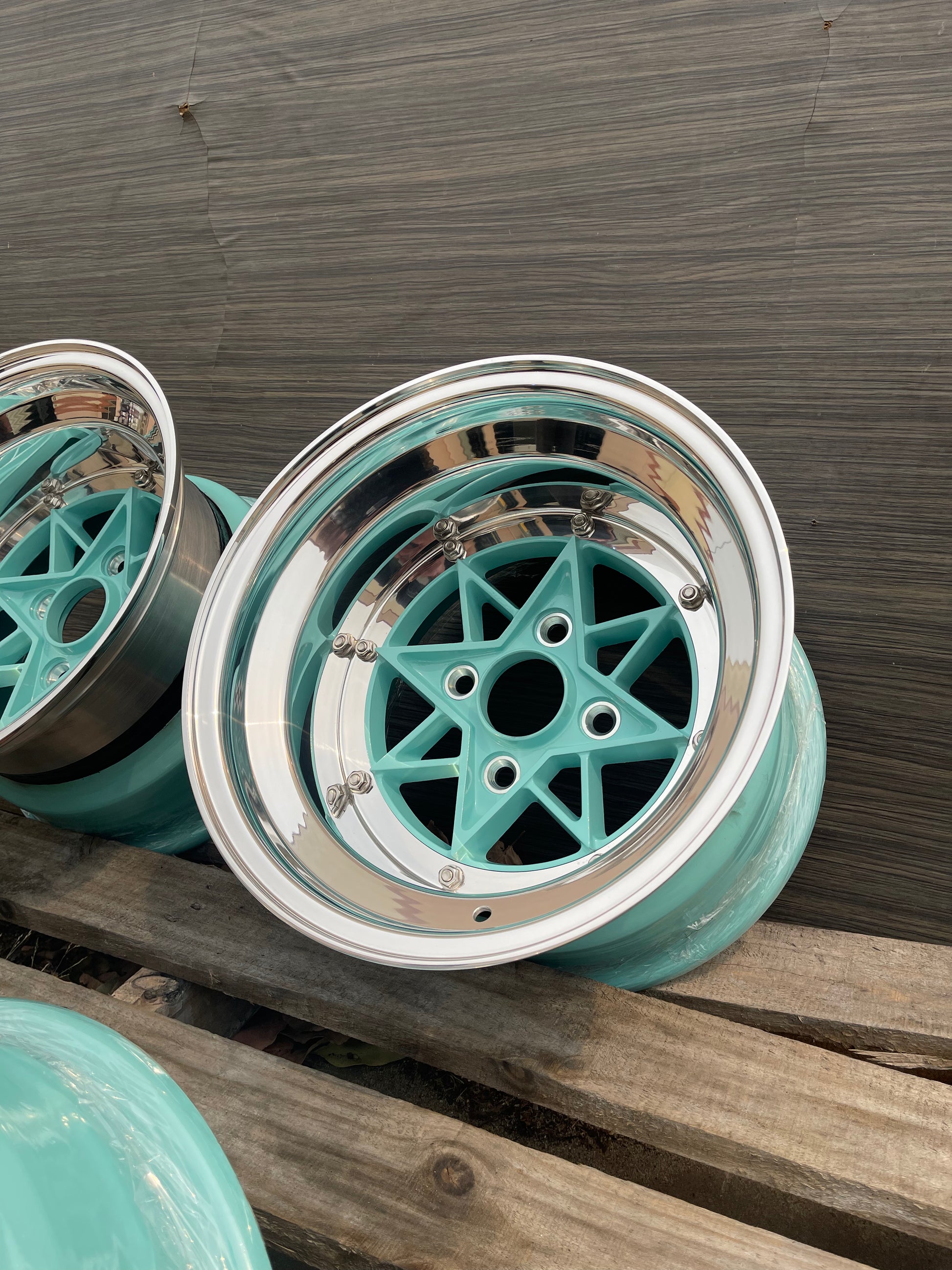

These are Typically found in small sized pre-1990s Jdm Japanese made multi piece Wheels. for example, SSR wheels like the popular XR4, Starshark, Work Equip ect.

However, they do suit a wide range of wheels that run a steel insert.

  • Silver zinc plated in colour
  • Standard 60° taper
  • Knurled outer ring for a tolerance press fit
  • Can be powder coated over the zinch finish once etched

    Specifications
  • Spline diameter- 19.4mm
  • Spline section height (outside)- 5.9mm
  • Overall height- 11.2mm
  • Outer diameter- 28mm
  • Seat angle- 63 degrees
  • Bore- 14.9mm
